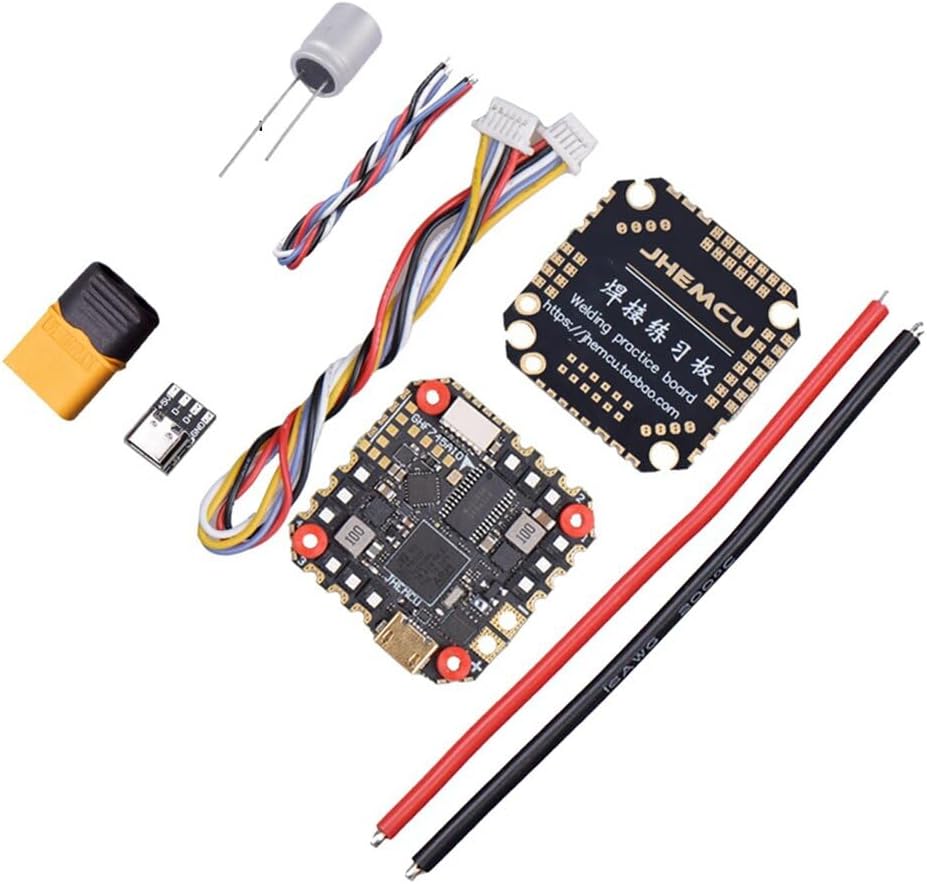

QWinOut GHF745AIO MPU6000 F745 Flight Controller Built-in BEC OSD Module for DIY RC Drone (50A)
Product details
| Management number | 208628704 | Release Date | 2026/03/22 | List Price | $44.61 | Model Number | 208628704 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Model: GHF745AIO MCU: STM32F745/216M IMU: MPU6000/Gyro/Accel OSD: AT7456E Baro: YES Blackbox：8MB Input voltage: 3S-6S（11.5V-26V） 5V-BEC：5V/2.5A ±0.1V 10V-BEC: 10V/2A ±0.1V Receiver：ELRS(CRSF), TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX HD interface: YES USART: UART1,UART2,UART3,UART4,UART5,UART6 IIC： IIC1 Led_Strip: YES Buzzer: 5V ESC signal: Dshot150，Dshot300，Dshot600 USB: Micro USB Current port：YES Voltage sensor：YES DFU button： YES FC Firmware: betaflight_4.4.2 JHEF745.HEX Size: 33*33MM Mounting Hole: 25.5*25.5*3MM Weight: 7.3g ESC Current: 40A/50A ESC MCU： STM32G071 ESC TYPE: Blheli_32 ESC Firmware: _G071_ESC_Multi_32_9.HEX
- GHF745AI0 adopts STM32F745+MPU6000 gyroscope to realize stable flight effect, built-in 5V/2.5A,10V/2A BEC, built-in OSD module, barometer and black box.
- Brushless ESC part of the 32-bit STG071 with high-power MOS, built-in TVS module, no need to weld TVS module in the outer part.
- ESC Current: 40A/50A
| Manufacturer | QWinOut |
|---|---|
| Manufacturer recommended age | 15 years and up |
