Ethernet Over Coax EOC Converter IP Extender Kit, Max 6560ft (2000m) Extension Distance, Coax to RJ45 Adapter Extender for Elevator IP Security CCTV Cameras Video System Upgrading

Product Name:AtNeDcVh Ethernet Over Coax EOC Converter IP Extender Kit, Max 6560ft (2000m) Extension Distance, Coax to RJ45 Adapter Extender for Elevator IP Security CCTV Cameras Video Upgrading Old Analog to New IP Digital Surveillance System - Transmitter & Receiver 1 PairProduct Application：Upgrading a old analog system to a new IP digital system in existing coaxial network without rewiring.Transmission Distance & Speed:With a RG59, RG6, RG11 coaxial cable, it’s 984FT(300m) in 100Mbps, 3937FT(1200m) in 78Mbps, and 6560FT(2000m) in 30Mbps (When over 1640FT(500m), Must be using RG59-128 braiding at least). With twisted pair, it’s 984FT(300m) in 78Mbps, 3937FT(1200m) in 60Mbps, and 6560FT(2000m) in 25Mbps.Interfaces:A RJ45 port, a BNC-F port, a DC 12V power jack (10-60V wide voltage input supported), a power supply terminal block (10-60V wide voltage to power IP devices supported, powering voltage=the DC power adapter input voltage). What’s in the box: BG501F EOC converter * 1 pair (transmitter&receiver), DC 12V power adapter * 2pcs, User guide * 1pcsNon PoE: The product does not support PoE function, and both the transmitting and receiving ends of it need a dc power adapter for power supply.

• 【Product Application】It is a coaxial to IP converter & extender, a perfect product solution for upgrading a old analog system to a new IP digital system in existing coaxial network without rewiring. Made with high-performance intelligent chips can effectively handle signal transmission in complex environments, ensuring stable signal transmission and strong anti-interference capability. For digital upgrading of devices such as elevator ip security cctv cameras video.
• 【Transmission Distance & Speed】 Compatible with a RG59, RG6, RG11 coaxial cable. Transmission distance is 984FT(300m) in 100Mbps, 3937FT(1200m) in 78Mbps, and 6560FT(2000m) in 30Mbps (When over 1640FT(500m), Must be using RG59-128 braiding at least). With twisted pair, it will be 984FT(300m) in 78Mbps, 3937FT(1200m) in 60Mbps, and 6560FT(2000m) in 25Mbps. Two core twisted pair cables and coaxial cables can be mixed for use. Note: When using twisted pair transmission, BNC to twisted pair connectors will be needed, which are not included in this item.
• 【10-60V Powering IP Devices】Each unit is with an additional terminal block for powering, providing a wide voltage range of 10-60V/1A to power your IP devices, avoiding no more jacks to power at the location where the IP devices are installed. The voltage provided by the terminal block depends on the input voltage of the DC power adapter. For example, if using the default 12V power adapter equipped with this product, the voltage provided by the terminal block will be 12V. If your IP devices are requiring different power supplies, you will need to prepare power adapters of the corresponding specs for it.

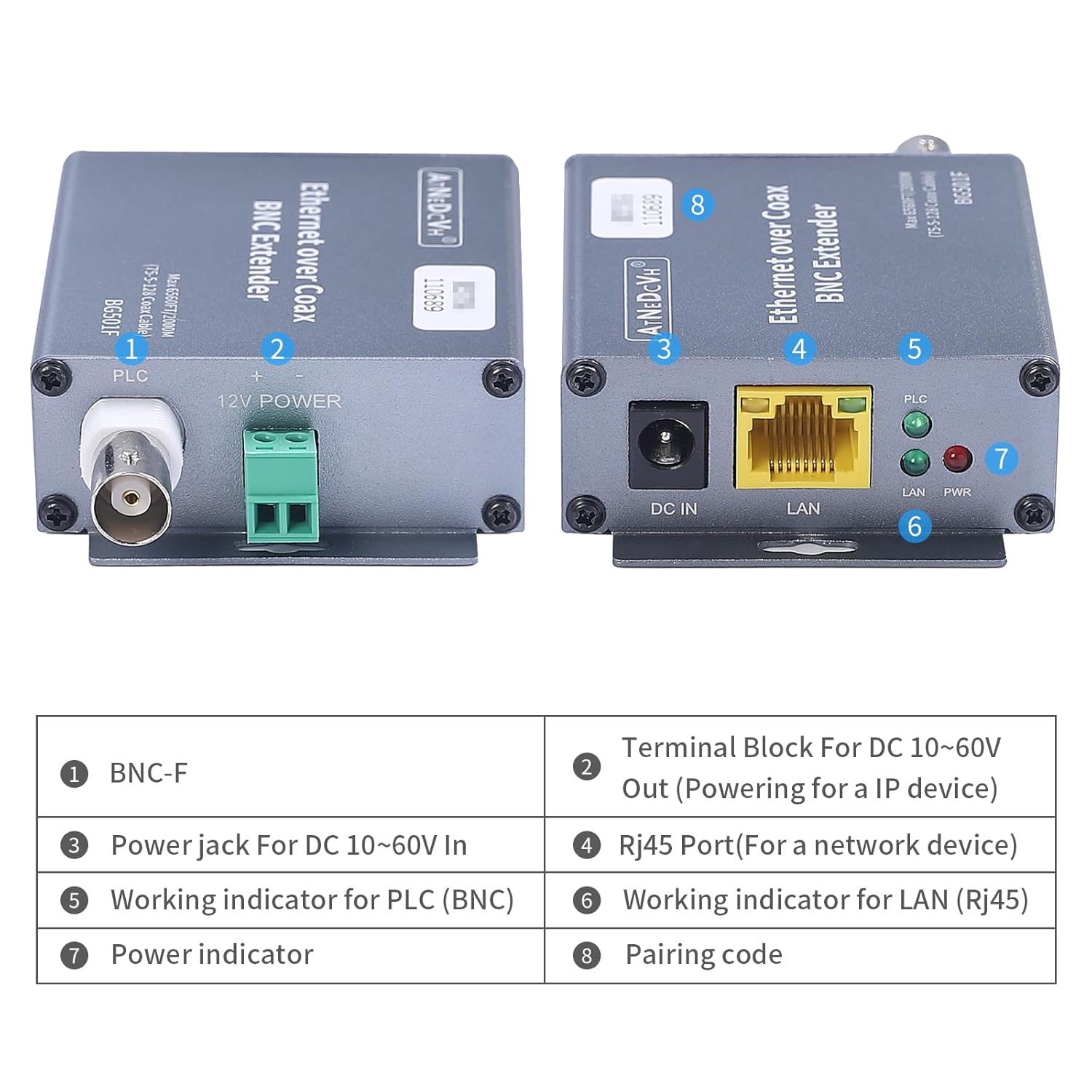

• 【Interfaces】 A RJ45 port, a BNC-F port, a DC 12V power jack (10-60V wide voltage input supported), a power supply terminal block (10-60V wide voltage to power IP devices supported, powering voltage=the DC power adapter input voltage). Indicator lights: PLC indicator light, LAN indicator light, PWR indicator light.
• Exquisite and compact, easy to install and run. Dimensions: L 84 * W 59 * H 23mm. The all metal shell design, fast and efficient heat dissipation, ensuring the normal and stable working of the devices.
• Non PoE: The product does not support PoE function, and both the transmitting and receiving ends of it need a dc power adapter for power supply.
