DX ANTENNA Outdoor for 2 Distribution K and K K 2dcs

Specifications: ■ Frequency band: 10~3224MHz ■ Specifications: Outdoor 2 Splitter ■ Input and Output Terminal: F-type terminal ■ Power transmission function: Input and output 1 terminal interconnect, DC 15 V, less than 0.8 A or less AC 30 V, 1 A ■ Construction: Die-cast shield case, rainproof resin cover ■ External dimensions: 2.0 x 3.4 x 1.9 inches (51 x 87 x 47.6 mm) (main unit only) ■ Weight: 0.17 kg ■ Compatible mast diameter: 0.9 - 1.9 inches (22 - 49 mm) ■ Accessories: F-5 fittings x 3, waterproof cap x 3. 【Description】 ■ 2 Splitter for home use with satellite broadcasts. ■ Satellite broadcasting bands are not only compatible with BS, 110 degree CS (2K) broadcasting of BS, 110 degree CS satellites, but also 4K and 8K broadcast. ■ Output 1 and input terminals can be powered by the output side to the antenna or booster. ■ The mast is installed with a single nut to greatly reduce the hassle and time of installation. ■ The inside of the resin case is made of high shielded die-cast construction to prevent radio leakage. Prevents radio interference with other radio services. ■ DX antenna flat antenna can be installed neatly on the back of UAH201/261 series. ■ Includes 3 F-5 faucets and 3 waterproof caps

• For more details, please check the "Product Specifications" and "Product Description"

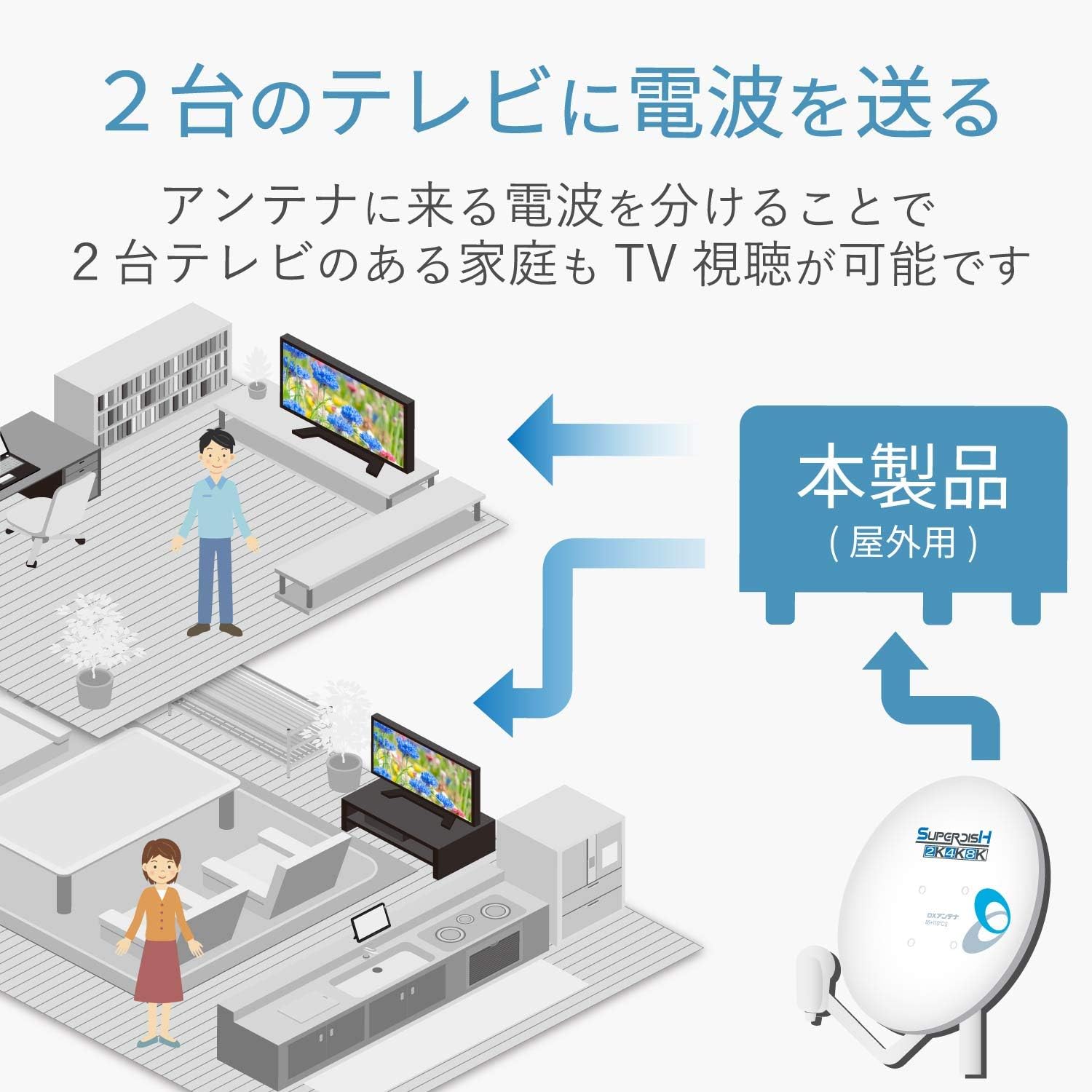

• This is a home satellite broadcast compatible outdoor divider
• The satellite broadcast band is not only compatible with BS, 110 degree CS (2K) broadcasts, but also 4K and 8K broadcast via BS and 110 degree CS satellites
• 1 output and 1 input terminal can be used to power the antenna or booster from the output end
• Mast mounting is a single nut fastener, which greatly reduces the effort and time of installation
